Hayward

Hayward Dual Suction Outlet for Vinyl Liner – 1-1/2" & 2", White

Hayward Dual Suction Outlet for Vinyl Liner – 1-1/2" & 2", White

Regular price $68.95
Regular price Sale price $68.95
Sale Sold
Shipping calculated at checkout.

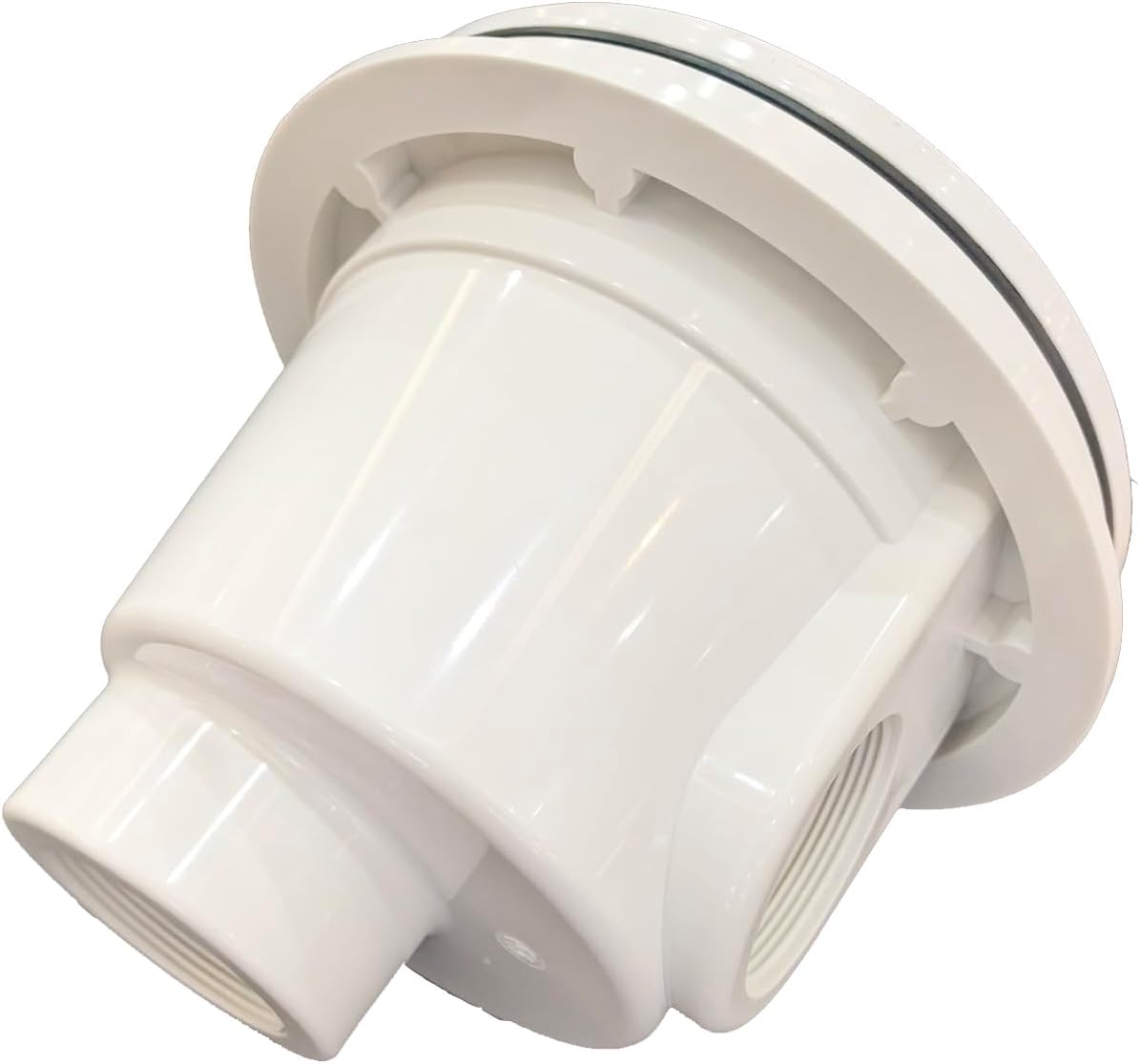

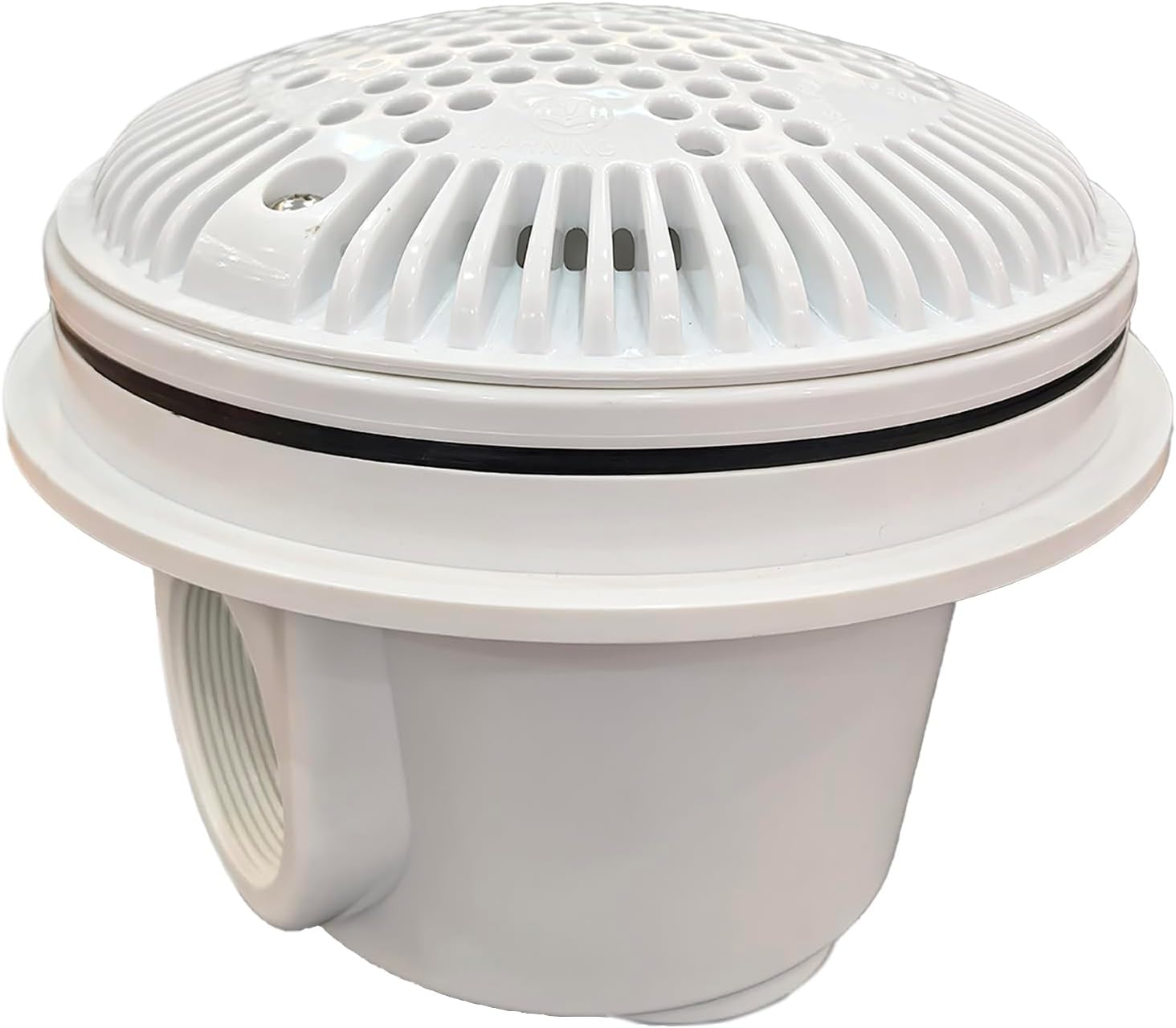

A genuine Hayward dual suction outlet (main drain) for vinyl-liner installation — ABS, white, with an 8" anti-vortex cover and two plumbing options in one sump: a 2" FIP side port and a 1-1/2" FIP bottom port. Use whichever suits your trench, and plug the other.

Why it's in a koi catalog

This is the budget path to a floor drain in a liner pond, quarantine system or show tank. A purpose-built koi bottom drain like the KoiToilet II flows more and seals to the liner with a larger flange — that's the right call for a full koi pond build — but for a smaller liner pond, a holding tank or a show tank, this Hayward unit does the through-liner floor-suction job at half the price, using the same liner-sandwich gasket method pool builders have trusted for decades.

Specifications

  • Ports: 2" FIP (side) and 1-1/2" FIP (bottom)
  • 8" round anti-vortex cover, white ABS
  • Vinyl-liner mounting: the liner is sandwiched between gaskets under a screwed ring
  • Sump accepts Hayward's hydrostatic relief valve (SP1056) — worth fitting where groundwater could lift an empty pond
  • VGB-era anti-entrapment rated cover (ASME A112.19.8b / ANSI-APSP-16)

Fair warning on suction

In swimming-pool service these are required to be installed in pairs, plumbed together, precisely so no single outlet can develop dangerous suction. A koi pond running a modest pond pump is a different situation, but the principle is sound: keep pump flow moderate on a single outlet, or split the suction across two. If a pump will draw hard on this line, tell us and we'll spec it with you.
