Matala Spectrum (Stainless Steel) UVC System
Matala Spectrum (Stainless Steel) UVC System
Ordering Information
Ordering Information
At Champion Nishikigoi, we’ve streamlined the order process for a smooth experience with koi fish, food, and pond equipment.
Koi Fish Orders:
After placing a koi fish order, we confirm availability and health, reserve your koi, and prepare it for pickup or shipping. If issues arise, we’ll reach out to discuss options.
Product Orders (Food & Equipment):
For supplies, we gather your items and notify you for pickup. If anything is out of stock, we’ll discuss alternatives.
Pickup & Shipping:
• Local Pickup: Available Tuesday to Sunday, 10 am to 5 pm.
• Shipping: We offer expedited shipping for koi with health checks and tracking for safe arrival.
For complete details, click here.
Refund Policy
Refund Policy
Live Fish:
- Due to the delicate nature of our fish, we cannot accept returns. However, we are committed to ensuring you receive your fish alive.
- Please ensure you are present during delivery to accept and sign for your fish.
- If, unfortunately, your fish arrives deceased, notify us within one hour of delivery. Send a digital photo as proof to champkoi@champkoi.com, and we'll replace it with another of equal value.
Non-Returnable Items:
- Chemicals, medications, water conditioners, and pond liners cannot be returned due to safety and quality reasons.
General Merchandise Returns:
- If you're not completely satisfied, you may return items within 14 days, subject to a 15% restocking fee. Note: shipping and handling costs are non-refundable.
- Items on sale or special deals, as well as special order items, cannot be returned.
- To ensure a smooth return:
- Items must be in unused, resellable condition.
- Original packaging, warranty books, manuals, parts, and accessories must be intact.
- For shipping, please encase the original packaging in another carton to prevent damage.
Return Process:
- Prior to returning any items, please obtain a Return Goods Authorization number (RGA) by contacting us. Have your invoice ready for reference.
- After inspection, we'll confirm acceptance of the returned merchandise.
Return Shipping:
- Customers cover return freight costs. If we made an error or the item is defective, we'll handle the freight charges.
- For orders with free shipping, the actual outgoing freight charge will be borne by the customer.
We're always here to help. Please reach out if you have any questions or concerns!

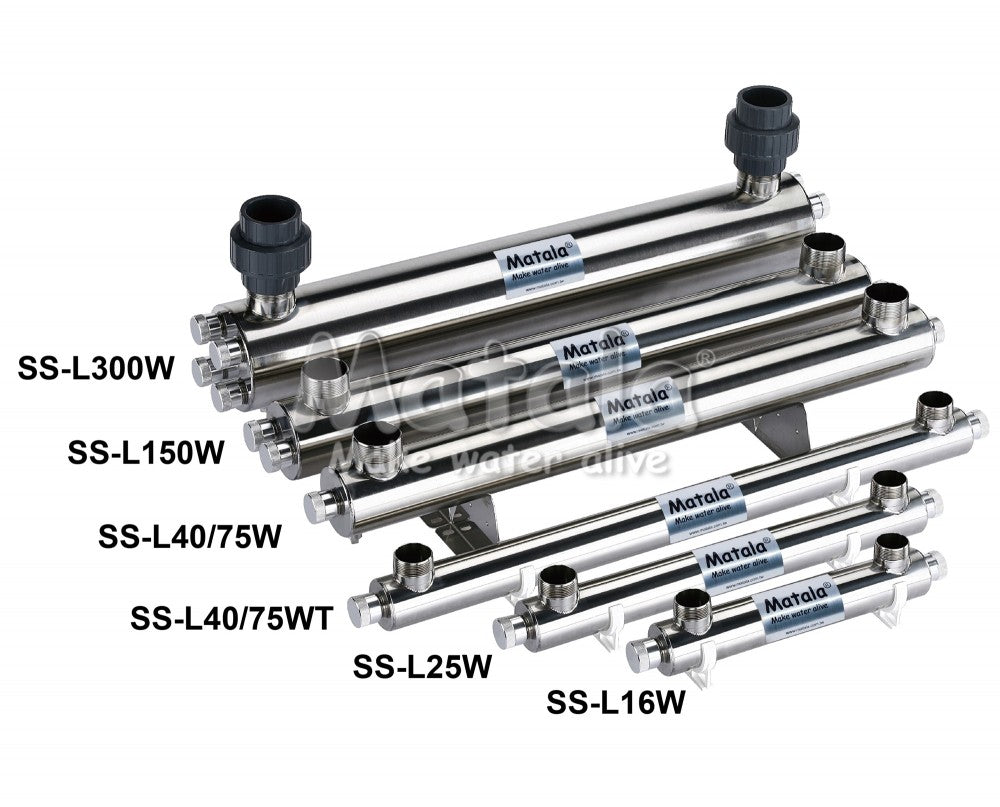

Spectrum UV-C Systems
Features & Benefits:
- Clear water easily.
- High quality lamp and quartz sleeve maintains high output of 254nm.
- Long service life requires little maintenance.
- No flow friction.
- Quick and simple installation.
- Polished stainless steel reactor chamber, high UV reflection.
- No chemicals added, environmentally friendly. The chamber is with high UV reflection.
| Model | SS-L16W | SS-L25W | SS-L40WT | SS-L75WT |
SS-L40W SS-L40WU |
SS-L75W SS-L75WU |
SS-L150W SS-L150WU |
SS-L300W SS-L300WU |
|
|---|---|---|---|---|---|---|---|---|---|
|
Voltage |
100-240V, 50 / 60Hz (Special electric ballast can use for full range voltage) |
||||||||
| UV lamp (W) | 16W | 25W | 40W | 75W | 40W | 75W | 75W x 2 | 75W x 4 | |
| Ballast watt (W) | 16W | 25W | 40W | 75W | 40W | 75W | 150W | 150W x 2 | |
|
Peak flow rate up to (GPH) / (LPH) |
1,400 5,300 |
2,000 7,600 |
3,500 13,300 |
5,000 18,950 |
4,000 15,200 |
5,700 21,600 |
6,500 24,650 |
17,000 64,350 |
|
|
Max. suggested pond size (gal) / (L) |
3,000 11,400 |
4,000 15,200 |
6,000 22,750 |
10,000 37,900 |
7,000 26,500 |
11,500 43,550 |
13,000 49,250 |
30,000 113,600 |
|
|
Chanber dimensions: Dia. L (in) / (mm) |
Ø2-1/2" x 11" Ø64 x 280 |
Ø2-1/2" x 21.3" Ø64 x 540 |
Ø2-1/2" x 33.1"
Ø64 x 840 |
Ø3.5" x 33.1" Ø89 x 840 |
Ø3.9" x 33.1"
Ø100 x 840 |
Ø5.5" x 33.1" Ø140 x 840 |
|||
|
Inlet / Outlet ports (PT/NPT) (in) |
1-1/4" Outside thread |
1-1/2" Outside thread |
2" Outside thread |
3" Outside thread |
|||||
| Chamber meterial / Max. pressure (psi) |
Stainless Steel / 125PSI |
||||||||
| UV rated lamp life (hrs.) | Up to 9000 hours | ||||||||
|
Package dimensions: LxWxH (in) / (mm) |
22.8x5.9x4.6 580x150x118 |
30.0x5.9x4.6 765x150x118 |
37.0x7.1x5.1 940x180x130 |
38.2x8.5x11.2 970x215x285 |
38.2x8.5x18.3 970x215x465 |
||||
| Ship weight (lbs) / (kg) |
6.6 / 3.0 |
8.8 / 4 | 12.8 / 5.8 | 12.8 / 5.8 |
40W: 18.5 / 8.4 40WU: 21.1 / 9.6 |
75W: 18.5 / 8.4 75WU: 21.1 / 9.6 |
150W: 24.3 / 11.0 150WU: 26.8 / 12.2 |
300W: 35.3 / 16.0 300WU: 40.8 / 18.5 |
|
| Spare parts | |||||||||
| UV Lamp | TUV16W 4P SE | TUV25W 4P SE | TUV36T5 HE 4P SE | TUV36T5 HO 4P SE | TUV36T5 HE 4P SE | TUV36T5 HO 4P SE | |||
| Quartz Sleeve | QS-L16W | QS-L25W | QS-L40/300W | ||||||
| Ballast | BL-L16W | BL-L25W | BL-L40W | BL-L75W | BL-L40W | BL-L75W | BL- L150W | ||
• The above specifications are subject to change without prior notice. • Lamp useful life: 9000 hours (source of data from PHILIPS).
